Line Refinements

The frame "Line refinements" contains a table with the list of input line refinements. Adding (editing) line refinements is performed in the "New line refinements" dialog window.

Refining the finite element mesh around lines is an important feature, which allows us to create an appropriate finite element mesh.

Line refinements can also be introduced using the mouse. This inputting mode is activated by clicking an appropriate button on the horizontal tool bar "Line refinements". The following modes are available:

  • Add

Clicking the left mouse button on the desktop introduces the line. Adding line refinement is performed in the "New line refinement" dialog window.

  • Modify

Clicking the left mouse button on already existing line refinement opens the "Modify properties of line refinement" dialog window, which allows for modifying its parameters.

  • Remove

Clicking the left mouse button on the line refinement opens the remove line refinement dialog window - accepting this action removes the selected line refinement.

  • Select

Clicking the left mouse button on the line refinement highlights the selected line refinement. The line refinement is simultaneously marked in the table list. The option allows for editing several line refinements at once (e.g. deleting).

The input line refinements can also be edited on the desktop with the help of active objects.

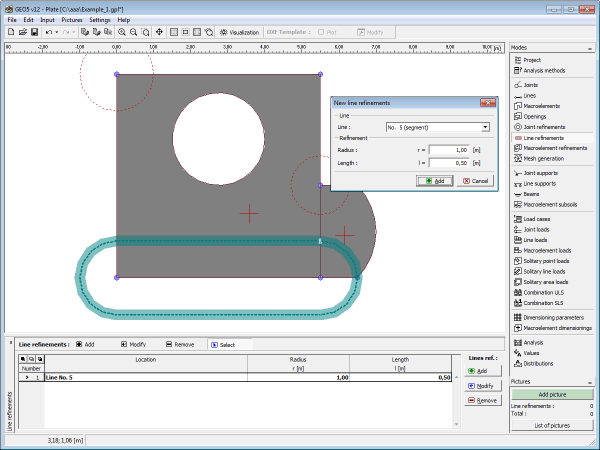

  Frame "Line refinements"

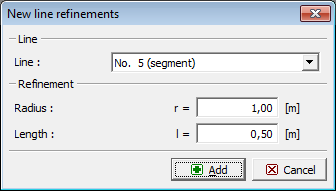

Dialog window "New line refinements"
